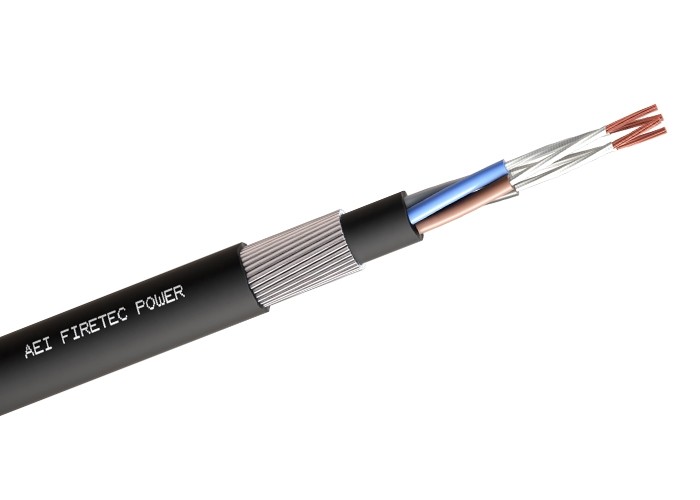

FIRETEC POWER

BS 7846-F2
Nominal cross-sectional area (mm²) *
Cores *
Length (m) *

Affiliates - Manufacturing standard

https://aeicables.co.uk/British Approvals Service For Cables (BASEC) https://aeicables.co.uk/LPCB

Multicore Armoured Power & Control Cables designed as per BS 7846 with Steel Wire Armour construction to meet category F2 fire test (C-W-Z test as per BS 6387).

Fire Performance:

  • BS7846 F2 – LPCB
  • BS6387 C-W-Z – LPCB
  • BS EN50200 PH120
  • BS8434-2
  • BS8519:2020 Power & Control CAT 1 & 2

Additional Fire Performance:

  • BS EN50267 – IEC60754 – Acid Gas Emission
  • BS EN50268 – IEC61034 - Smoke Emission
  • BS EN50265, 50266
  • BS EN / IEC 60332-1 Flame Propagation
  • BS EN / IEC60332-3 Categories A, B & C Flame Propagation

Construction:

  • Class 2 Plain Annealed Copper Conductor to BS EN60228
  • Mica Glass Taping
  • XLPE Insulated
  • Low Smoke Zero Halogen (LSZH) Bedding
  • Galvanised Steel Wire Armour
  • Low Smoke Zero Halogen (LSZH) Sheathed

Voltage Rating 600/1000 Volt
Bend Radius 6 x Overall Diameter for Circular and 8 x Overall Diameter for Sector Shaped Conductors.
Operating Temperature -10°C to +90°C
Short Circuit Temp +250°C
Sheath Colour Black as Standard
Core Identification 2 Core: Brown & Blue
3 Core: Brown, Black & Grey
4 Core: Brown, Blue, Black & Grey
Construction Class 2 Copper Conductors, Mica Glass Taped, XLPE Insulated, LSZH Bedding, SWA, LSZH Sheathed
